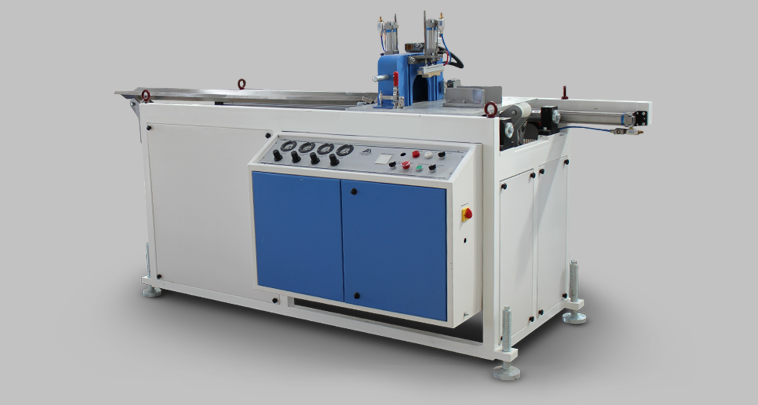

Tube Pipe Cutting unit

Clients can avail a comprehensive range of Pipe Cutting unit at market leading prices. These systems are fabricated using high-grade material that ensure their sturdiness and flawless finish. Our offered systems are equipped with pneumatically operated carriage movement and can be synchronized with pipe line speed. Further, depending upon wall thickness, the clamping force adjusts through pneumatic cylinders.suppliers in Ahmadabad Pipe Cutting Units.

Performance Features

  • Saw table movement with linear bearing on hard and chrome plated imported Guide bar / guide rail
  • Pneumatically operated carriage movement and can be synchronized with pipe line speed
  • Carbide Tips Cutter for longer life
  • Smooth and clean cut of pipe
  • Clamping force adjustable through pneumatic cylinder depending upon wall thickness of pipe
  • Length counter offered optionally
  • Dual Cutter for Dual Pipe Extrusion Line
  • Planetary Cutting Unit provided above TCU-315 Model

Product range

Models TCU - 110 TCU - 200 TCU - 250 TCU - 315 TCU - 400 TCU - 630
Pipe Range (mm) 20-110 20-200 50-250 90-315 110-400 160-630
Clamping From Top Top Top Top/Side Universal Universal
Saw Dia 350 550 630 850 180 355
