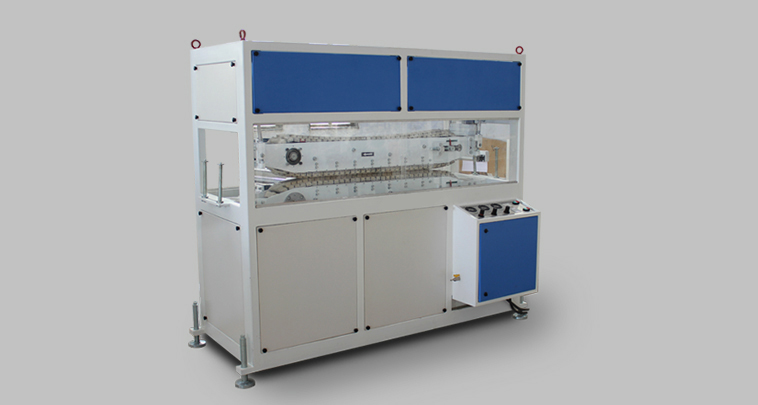

Tube / Pipe Traction Unit
The haul-off unit grips the pipe over a long length and pulls it at a constant speed. The haul-off consists of a number of pulling belts around the pipe. The pulling belts, which are located under the extrusion axis, are mechanically adjustable and upper ones are driven pneumatically
Performance Features
- Double Belts / Multi Belts Haul Off 3/4/6 belts available for optimum pulling force and to prevent ovality even for larger diameter and thin wall pipes.
- Easily removable rubber pads / Moulded Rubber Chain
- Can be easily synchronized with any type of extruders
- Track adjustable by pneumatic control
- Line speed can adjusted with AC Drive
- Dual Haul Off for Dual Pipe Extrusion Line
- Encoder for length measurement and feedback offered optionally
- State of the art Electrical Panel with control unit
Product range
| Models | TTU - 110 | TTU - 250 | TTU - 315 | TTU - 450 | TTU - 630 |
|---|---|---|---|---|---|
| Pipe Range (mm) | 20-110 | 20-250 | 75-315 | 110-450 | 110-630 |
| No. of Tracks | 2 | 2 | 3-4 | 4 | 4-6 |
| Pipe Contact Length (mm) | 800 | 1200 | 1200 | 1600 | 1600 |
| Line Speed ( m/min ) | 15 | 10 | 10 | 7 | 5 |
